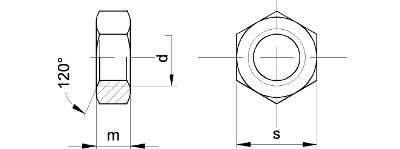

FLACHE SECHSKANTMUTTERN DIN 439 festigkeitsklasse |
| BACK | Print (pdf) |
| d | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 |
| m | 2,2 | 2,7 | 3,2 | 4 | 5 | 6 | 7 | 8 |
| s | 7 | 8 | 10 | 13 | 17 | 19 | 22 | 24 |
| d | M18 | M20 | M22 | M24 | M27 | M30 | M36 | M42 |
| m | 9 | 10 | 11 | 13 | 13,5 | 15 | 18 | 21 |
| s | 27 | 30 | 32 | 36 | 41 | 46 | 55 | 65 |
